DESIGN OF INDUSTRIAL ROADS AND FREEWAYS – JUBAIL

Design and engineering services support for multilane freeways and divided highways for Jubail industrial area. The work includes roads, half diamond interchanges, trumpet diamond interchanges, grade separation interchanges, reinforced and pre-stressed concrete bridges. Moreover, the project pertains landscaping of the right of ways, street lighting, signing and signalling.                                           The detailed design pertains traffic survey, geotechnical investigations, geometric design of roads, concrete bridges for grade separated intersections. Preparation of cost estimates and tender documents  under various design packages

COST: (SAR) 3.60 Billion

SERVICES :

•        Site Development and

    Design

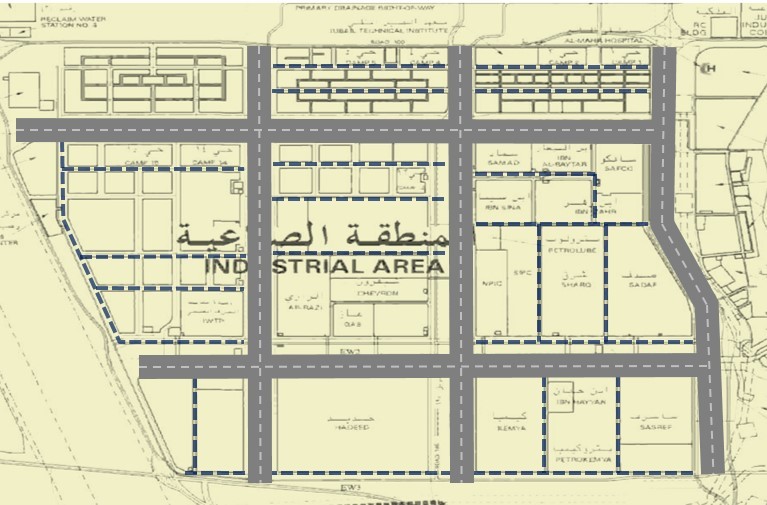

•        Road network design

•        Interchanges and bridges design

•        Support during Construction

Salient Features:

Length of 6-lane freeway    100 Km

Length of 4-lane freeway      5 Km

Length of 2-lane highway    17 Km

Half diamond Interchanges         9

Diamond Interchanges                4

Pres-stressed concrete bridges  66
